UFO LED high-bay light is a device which are consist of die-cast aluminum alloy heat-sink, PC optical lens, LED light source
model and driver. It can be a replacement of HID and other traditional light fixture, provided with higher efficacy, a longer
lifetime 50,000H at least or even more up to 100,000H but very lower breakdown opportunity, higher reliability and better
cost than before. It provides different light distribution angle by optical lens without reflector.
Optics feature
• CCT:2700-6500K
• CRI:80
• Light efficacy:140Lm/W
• Beam angle :110°
Electronic data
Electronic data
• Input voltage:100-277Vac
• 6KV surge protection
• 6KV surge protection
• PF>95% and THD<10% (full loading)
• Free of flickering
Smart function
• IP65,wet location
• Working temperature:-40 ℃ to 50℃
Others
• Finishing: Brown/White/Black/Customerization
Dimension:mm(inch)
The installation diagram
Smart function
• Dimming function with 3 in1(continual dimming)
• Optional for motion sensor and photo cell controller
Application
• large industrial area, parking field, sidewalksApplication
• IP65,wet location
• Working temperature:-40 ℃ to 50℃
Others
• Finishing: Brown/White/Black/Customerization
• 5 years warranty
Technical Parameters of 150W UFO high bay lamps|
Power |
150W |
|
Input Voltage(V) |
AC 100-277V |
|
Luminous(Lumen) |
21,000 |
|
Efficacy(LM/W） |
140 |
|
Typical CCT(K) |
4000/5000 |
|
CRI |
80 |
|
Beam Angle |
110° |
|
LED Chip |
3030 |
|
PF |
> 0.95 |
|
IP |
IP65 |
|
Dimension(mm/inch) |
φ322*121 12.68x4.76” |

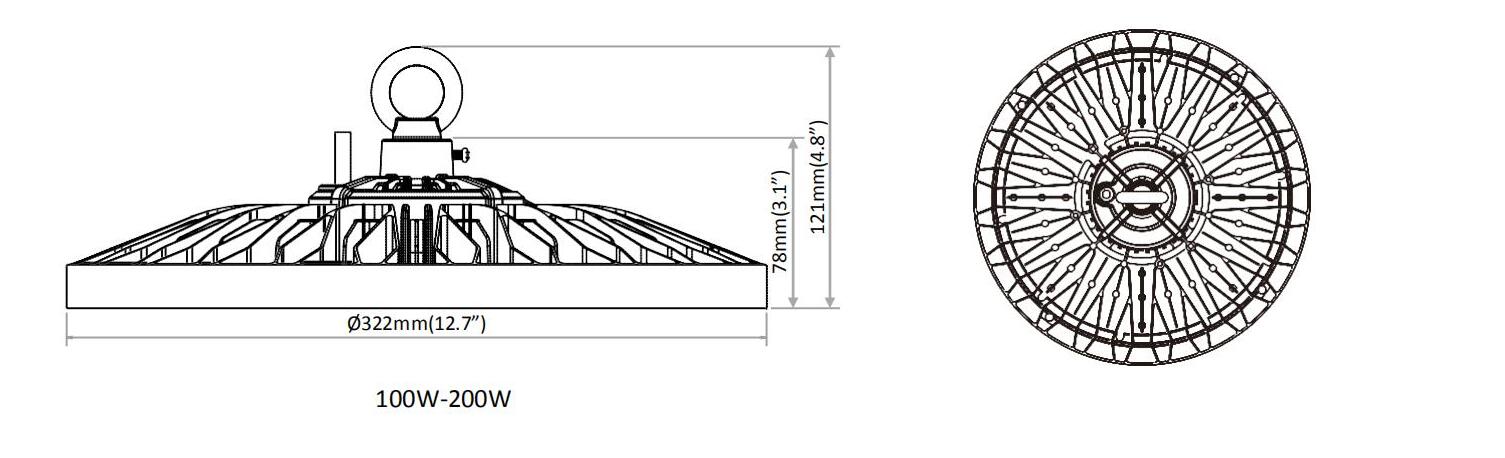

Dimension:mm(inch)

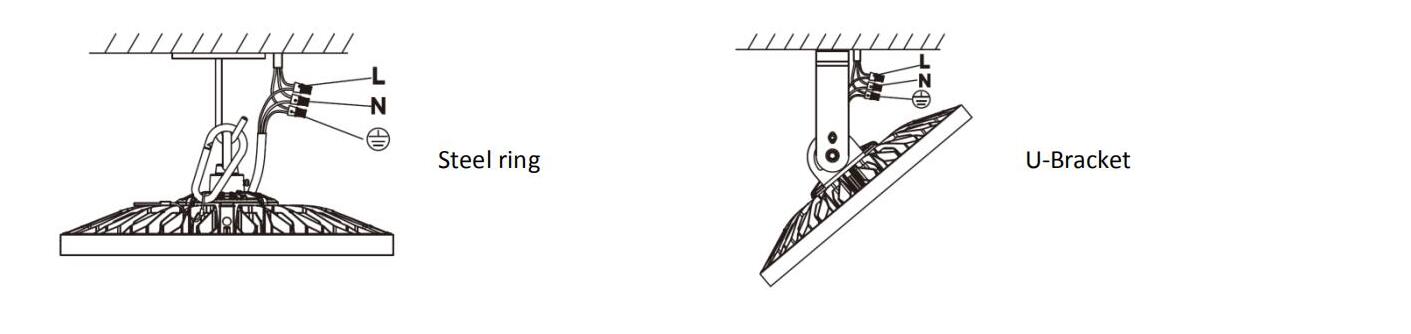

The installation diagram

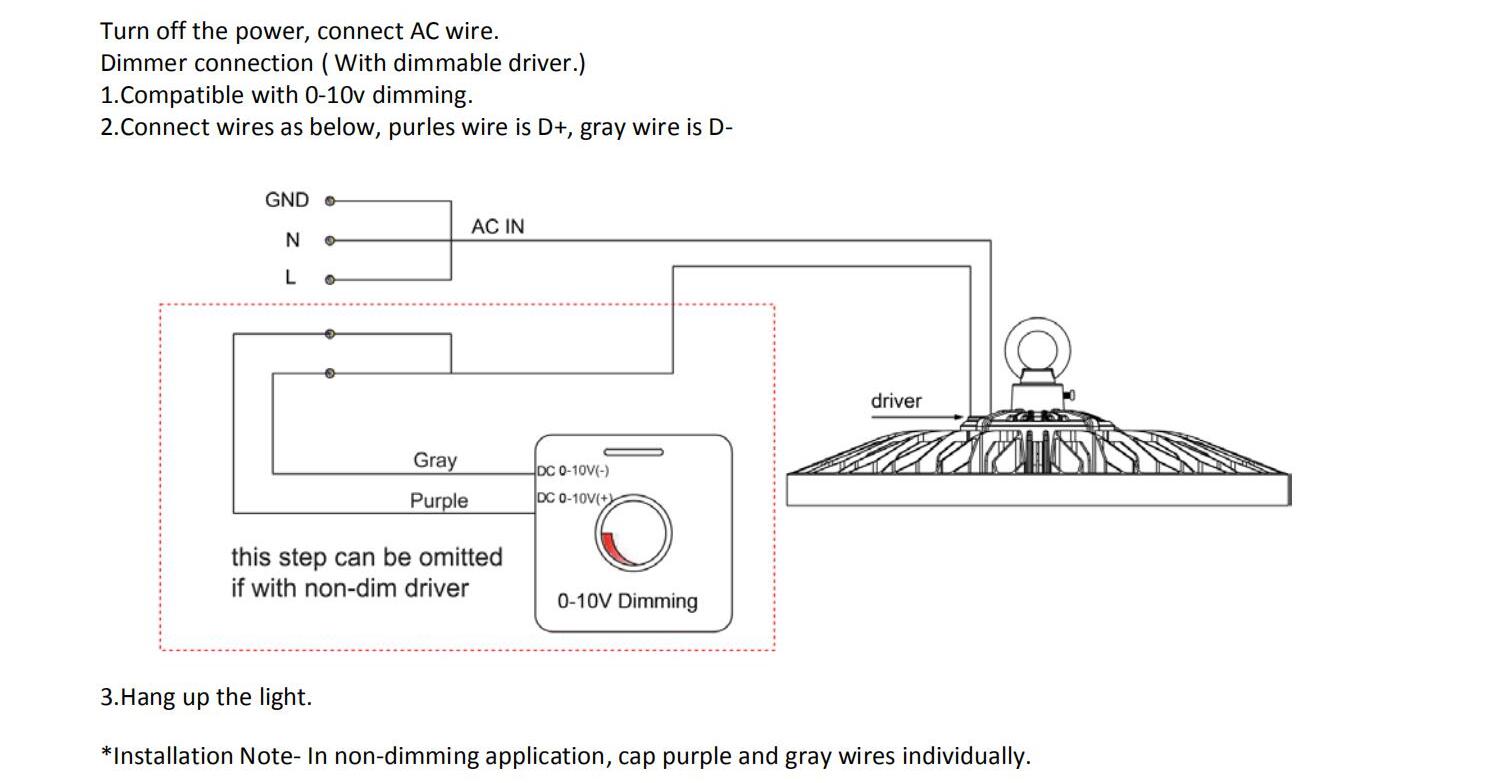

Wiring Connection

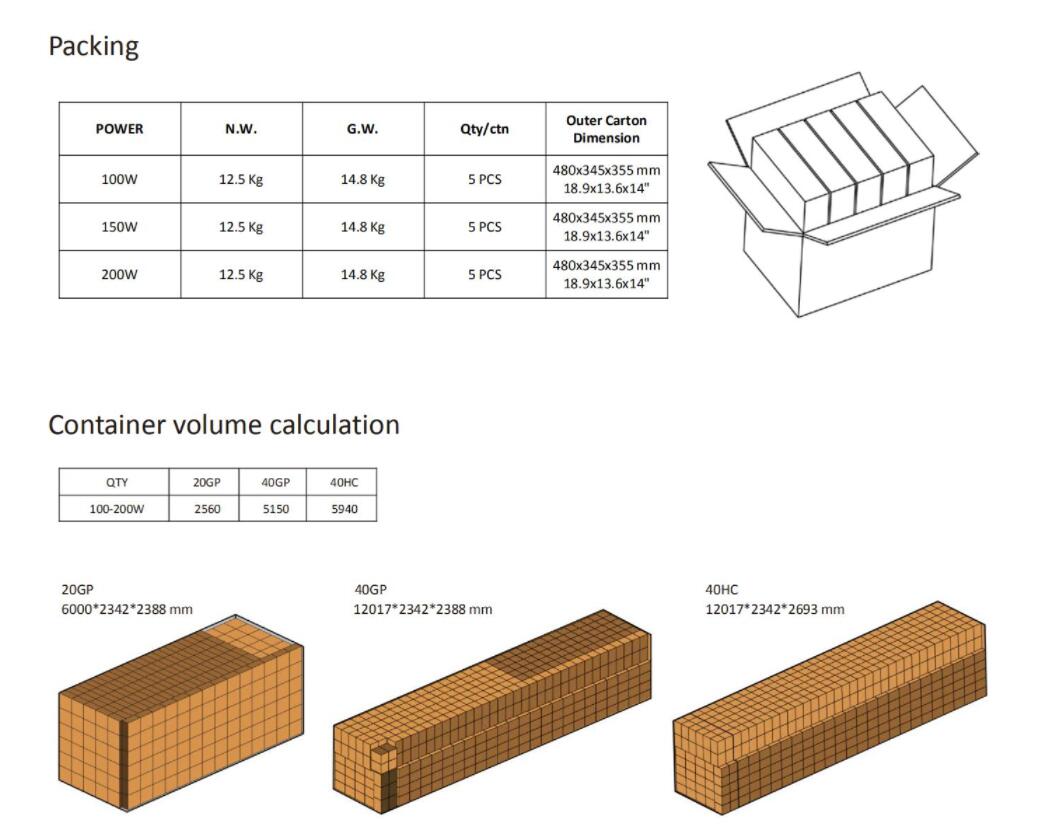

Packing of UFO lamps
