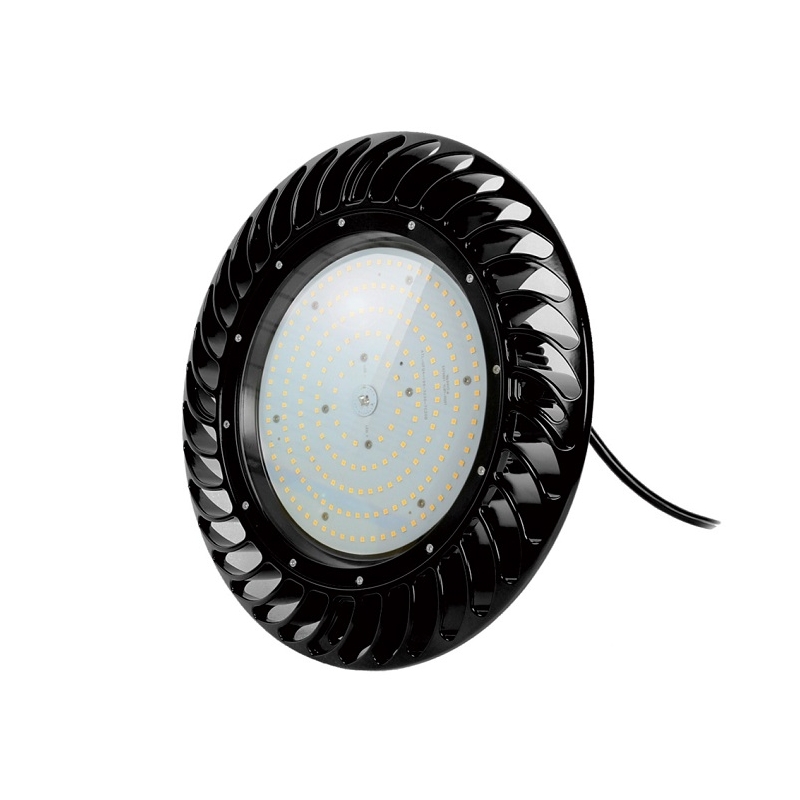

Introduction of UFO high bay
UFO LED high-bay light is a device which are consist of die-cast aluminum alloy heat-sink, PC optical lens, LED light source
model and driver. It can be a replacement of HID and other traditional light fixture, provided with higher efficacy, a longer
lifetime 50,000H at least or even more up to 100,000H but very lower breakdown opportunity, higher reliability and better
cost than before. It provides different light distribution angle by optical lens without reflector.
Advantage:
• Air convection design, that can keep the natural wind long time for heat disspation
• Annulus Lens. the LED quantity can be changed according to customer requirements.
• >140lm/W and > 170lm/W for option
• Bean angle: 60/90/120 degree for option
Optics feature
• CCT:2700-6500K
• CRI:80
• Light efficacy:140Lm/W ,170lm/W
• Beam angle :60°,90°,120°
Electronic data
Electronic data
• Input voltage:100-277Vac
• 6KV surge protection
• 6KV surge protection
• PF>95% and THD<10% (full loading)
• Free of flickering
Smart function
Application
• large industrial area, parking field, sidewalks
• Gymnasium ,Building,Factory,
• Warehouse,Supermarket,Garage Lighting,Workshop,Storage Lighting,Court,Station
Others
• Finishing: Brown/White/Black/Customerization
Smart function
• 1-10V, DALi dimmable driver for option
Application
• Gymnasium ,Building,Factory,
• Warehouse,Supermarket,Garage Lighting,Workshop,Storage Lighting,Court,Station
Others
• Finishing: Brown/White/Black/Customerization
• 5 years warranty
Products Details:
Technical Specification of 200W Windy series UFO high bay lamps
|
Power |
200W |
|
Input Voltage(V) |
AC 100-277V |
|
LED chip brand |
Philips or Bridgelux |
|
Efficacy(LM/W） |
140lm/W or 170lm/W |
|
Typical CCT(K) |
4000/5000 |
|
CRI |
80 |
|
Beam Angle |
60°/90°/120° |
|
LED Chip |
3030 |
|
PF |
> 0.93 |
|
IP |
IP65 |
|
Dimension(mm/inch) |
φ 400*H175.5mm |

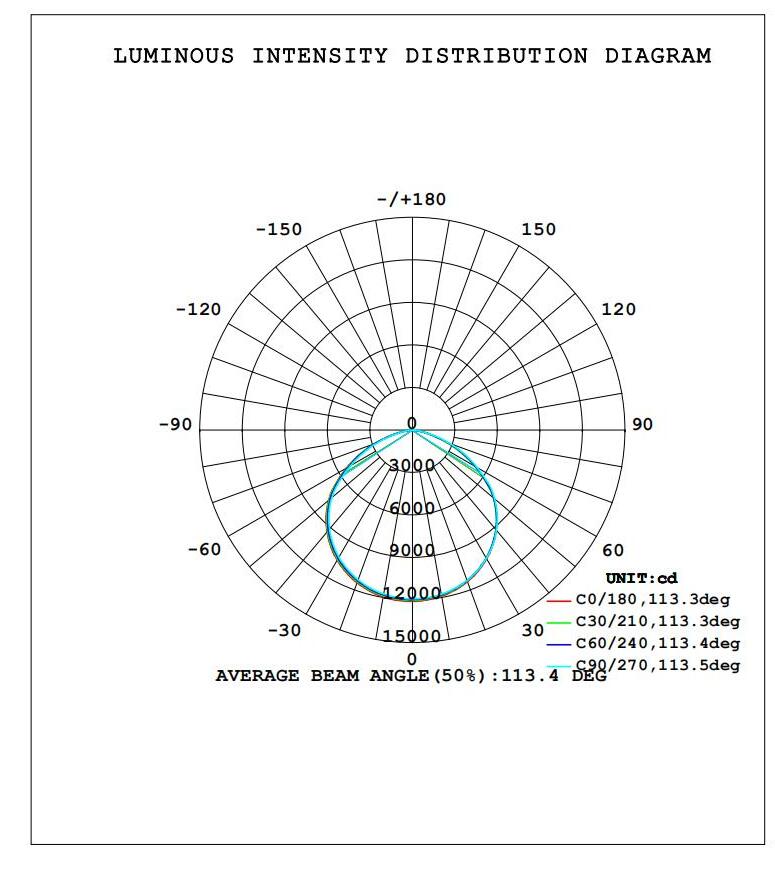

Illuminance of 200W 170lm/W Windy series UFO high bay with Glass Cover Beam Angle--120°
